The GX4222D is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.

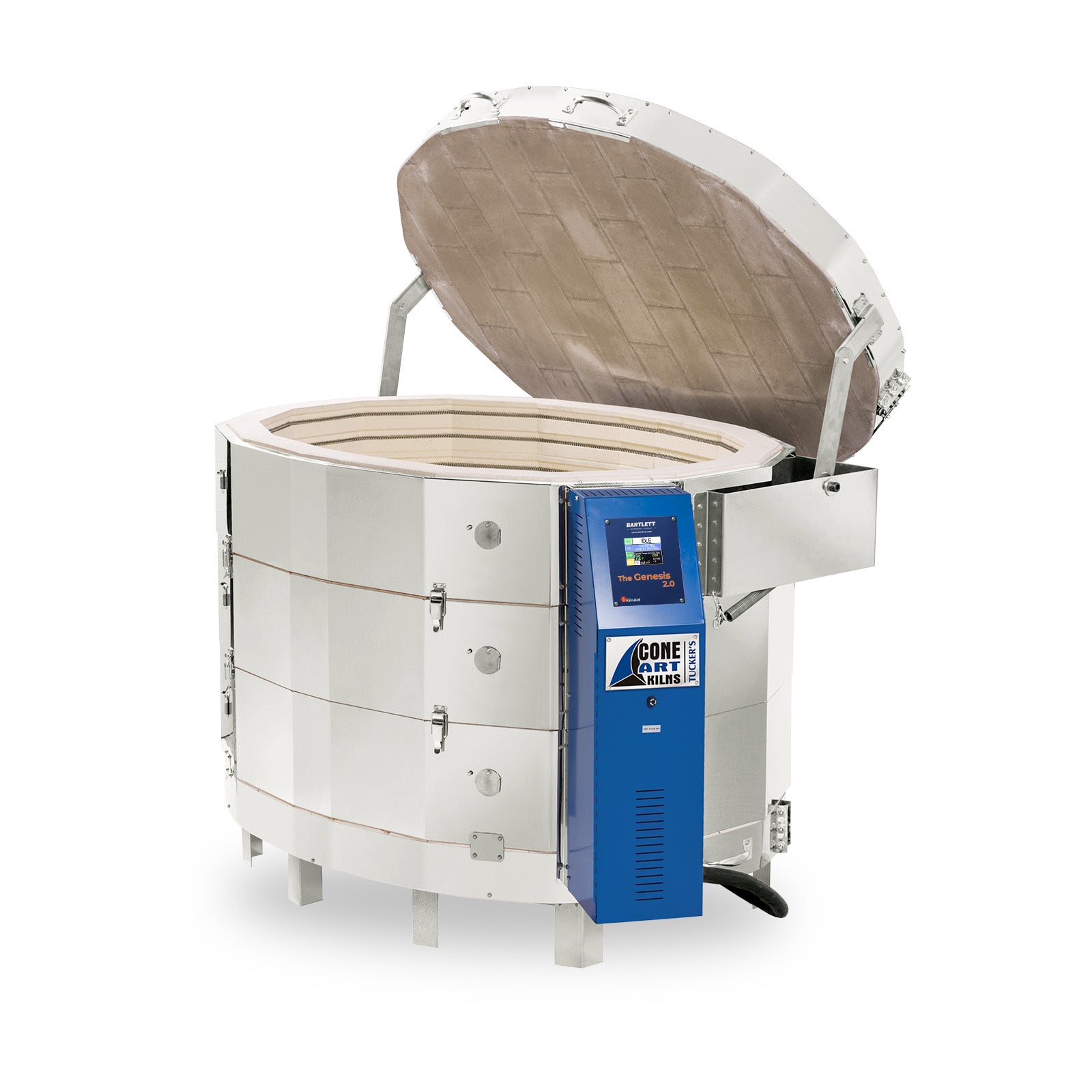

The Tuckers Cone Art Kiln Model 4222D is a 13.7 cubic feet oval kiln with a full 42″ width, 31″ from front to back and a 22.5″ depth. The 4222D is designed for a busy production or sculpture studio
The kiln is clad in a stainless steel jacket for extra protection and durability.
It is a double insulated kiln with a wall profile of 2.5 ” premium firebrick plus 1″ of block insulation. The extra insulation ensures a cooler, safer jacket, longer element life, and approximately 30 % savings in electricity costs.
The 4222D kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.
The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.
The jacket and fittings are all stainless steel or corrosion resistant metal.
The 4222D is equipped with the Wi-Fi enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.
The Tucker’s Cone Art 4222D sets the standard for excellence in quality construction and reliability. There is no other Kiln on the market today that can come close to matching all of these features.
Model - 4222D
Dimensions (inches): w (x l) x h Inside | Outside - 41 x 31 x 22.5 | 48 x 38 x 30.5
Sections - 3
Cubic Feet - 13.7
Ship Weight (Kgs) - 320
Phase - 1 or 3
Amps 240V - 1 Phase 75A | 3 Phase 43.3A
Breaker Rqd - 1 Phase 90A | 3 Phase 60A
CU Wire GA - 1 Phase 4 | 3 Phase 6
kW - 18
