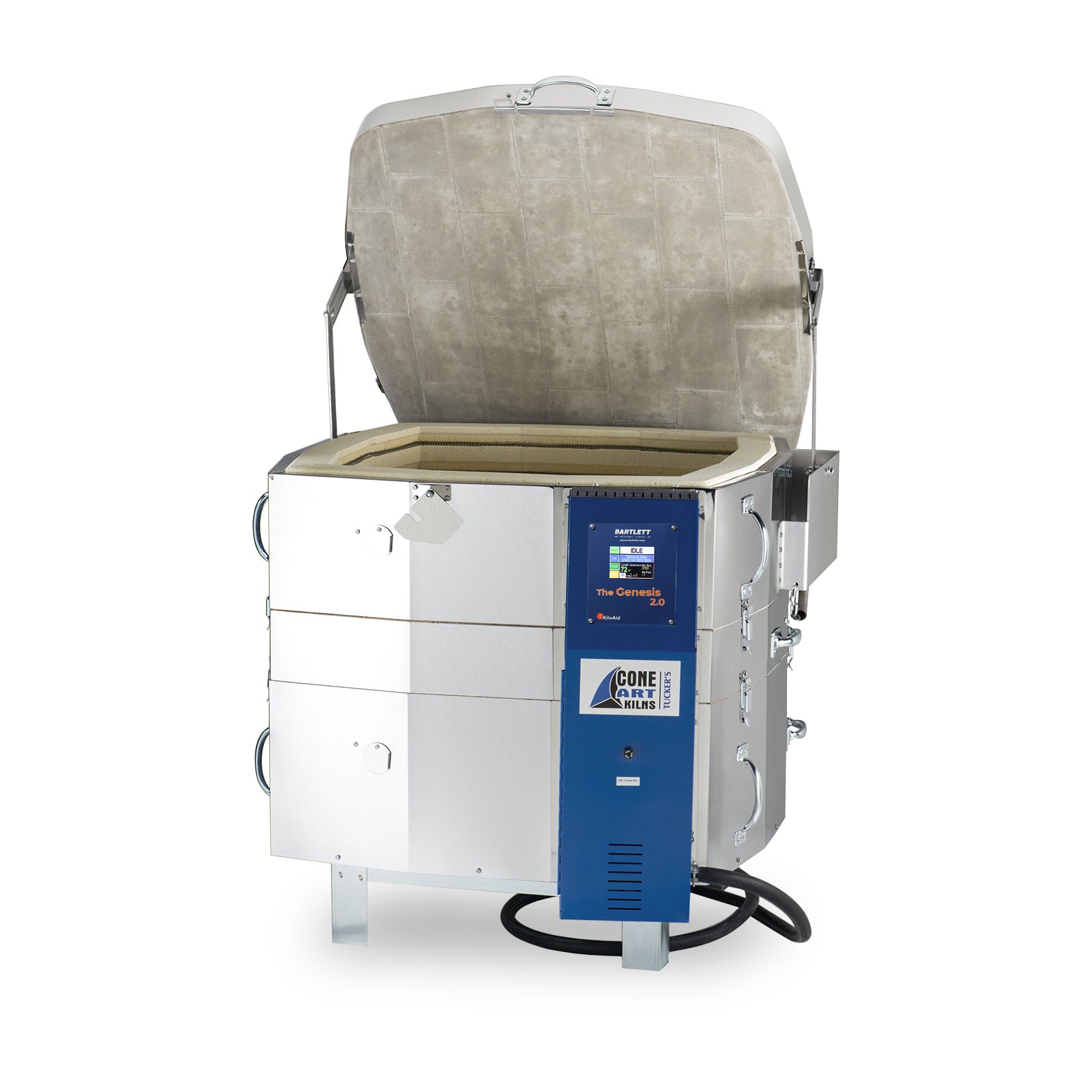

The GX2322D Square is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.
This top loader comes with all the standard features that set Cone Art apart: heavy duty floor element, double wall design, patented lid lifter system, multi zone control, and over sized swing out control panel. This kiln will easily fire to cone 10 and gives you a full 7.0 cft of stacking space. Not all pots are round…..and all kilns shouldn’t be either.
Double wall construction keeps energy efficiency high, and our standard element in the floor helps to ensure even firings every time. This kiln easily disassembles into 3 sections for easy delivery or shifting.
It is a double insulated kiln with 2 ½” of premium firebrick plus 1″ of block insulation. This double wall insulation ensures a safer, cooler jacket and approximately 30% energy savings over single wall kilns.
The 2322D Square kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.
The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.
The jacket and fittings are all stainless steel or corrosion resistant metal.
The 2322D Square is equipped with the Wi-Fi enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.
The Tucker’s Cone Art 2322D Square sets the standard for excellence in quality construction and reliability. There is no other Kiln on the market today that can come close to matching all of these features.
Model - 2322D Square
Dimensions (inches): w (x l) x h Inside - 23 x 23 x 22.5
Sections - 3
Cubic Feet - 7
Ship Weight (Kgs) - 175 / Dimensions (in) - 32 x 32 x 27.5
kW - 13.2
Phase - 1 or 3
Amps 220V - 60A (Breaker 63A) or 20A (Breaker 25A)
Copper Cable - 3 Core (L+N+G) 16 Sq mm or 5 Core (3L+N+G) 10 Sq mm
