The GX2327D is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.

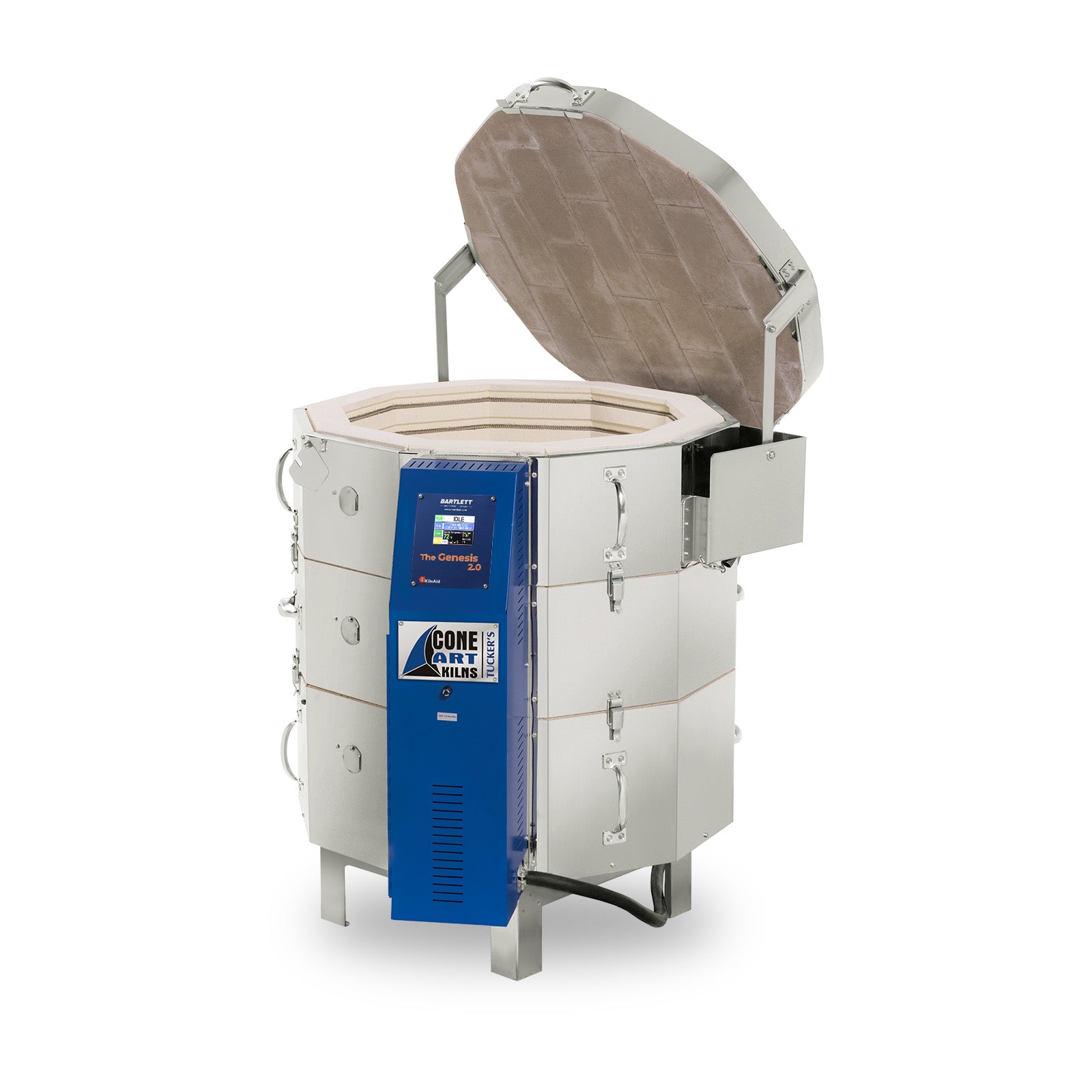

The Tuckers Cone Art Kiln model GX2327D is the most popular kiln that the company produces! The large 7 cubic foot capacity makes it an ideal kiln for the busy home studio or school classroom. It fires easily to a true cone 10.
With a 23.5” interior diameter this kiln is suited for 21” diameter shelves. Built with 3 thermocouples, this model can easily fire hot, fast, and evenly.
Double wall construction keeps energy efficiency high, and our standard element in the floor helps to ensure even firings every time. This kiln easily disassembles into 3 sections for easy delivery or shifting.
It is a double insulated kiln with 2 ½” of premium firebrick plus 1″ of block insulation. This double wall insulation ensures a safer, cooler jacket and approximately 30% energy savings over single wall kilns.
The 2327D kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.
The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.
The jacket and fittings are all stainless steel or corrosion resistant metal.
The 2327D is equipped with the Wi-Fi enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.
The Tucker’s Cone Art 2327D sets the standard for excellence in quality construction and reliability.
Model - GX2327D
Dimensions (inches): w (x l) x h Inside 23.5 x 23.5 x 27
Sections - 3
Cubic Feet - 7
Ship Weight (Kgs) - 170 / Dimensions (in) - 30.5 x 30.5 x 33
kW - 11.5
Phase - 1 or 3
Amps 220V - 52.27A (Breaker 63A) or 17.42A (Breaker 25A)
Copper Cable - 3 Core (L+N+G) 10 Sq mm or 5 Core (3L+N+G) 6 Sq mm
